1800 x 665 x 50 Interlocking Multi Mat

1800 x 665 x 50 Interlocking Multi Mat

List: £422.22

£380.00 +VAT

3 in stock

Orders placed before 2pm will be delivered next working day *
* Pallets can take between 1-3 days. Mainland UK. Timings will vary for overseas orders dependant on air, sea or road freight.

3 In stock
SKU: IP-58806 Categories: , , , , , , , , ,
Dimensions (mm)1800 x 665 x 50
Weight (kgs)58.00
Product CodeIP-58806

Ask about our Price Match Promise!

Need a hand? Speak to our expert team.

Product Description

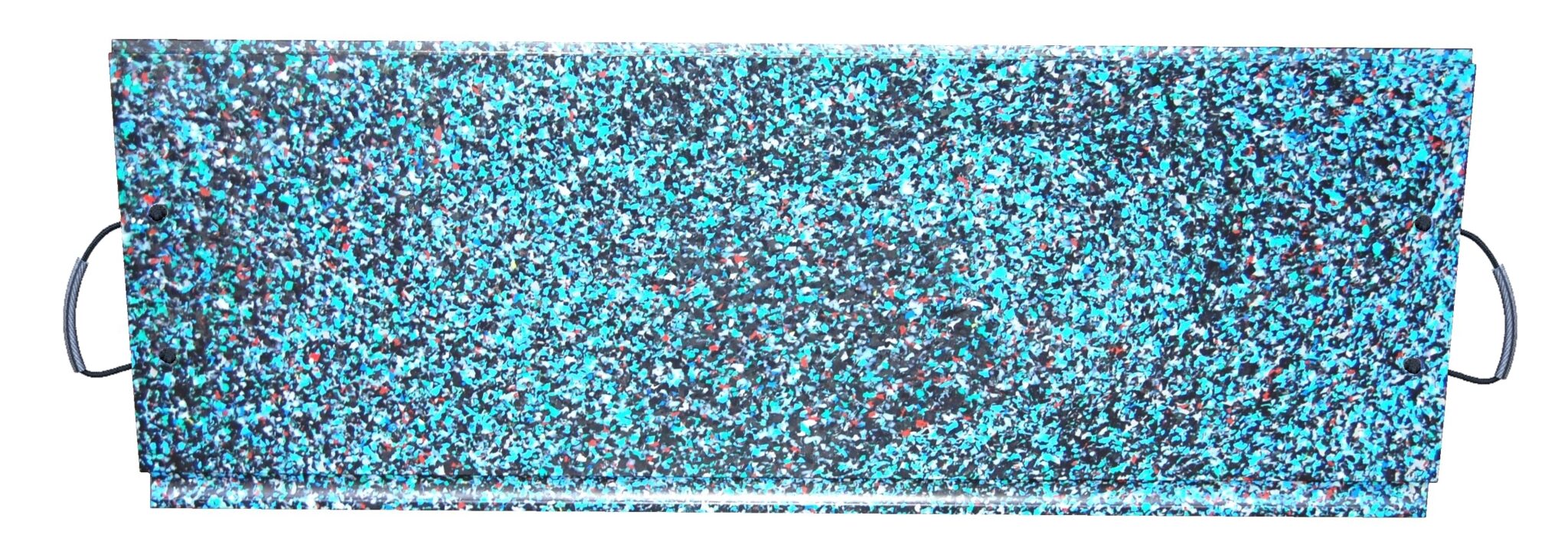

Interlocking Multi Mat Outrigger Pad

Our modular Interlocking Multi Mat System offers excellent durability and rigidity, reducing the overall pressure being directed at the ground and effectively supporting heavy plant and cranes. It's manufactured to our premium pad specification - high quality UHMW polyethylene - and consists of sectional outrigger pads that interlock to form a larger surface area. The system can be laid by hand, and easily manoeuvred from site to site.

These pads can be used for a variety of applications either individually or as a complete system.

  • Stage 1 - Three mats are interlocked side by side
  • Stage 2 - Two mats are interlocked on top at 90 degrees
  • Stage 3 - A single outrigger pad is placed centrally on the top, securing the Multi Mat System

Our recommended 1800 x 665 x 50 multi mat system covers a 4.32m² support area and will take a load capacity of 160 tonnes. For a 4.32m² support area, you'll require a total of 7 pads. All pads are sold separately.

Download our Interlocking Multi Mat System & Configuration guide.

To make an enquiry about our pads or to get a quotation call us on 01952 671403 or contact us via email.

Material Specification

Material Specification ISO-LEN 500 Test Method
Density of homogeneously moulded material 0.951 g/cm³ DIN 53479
Molecular weight ca. 0.6 /
Mechanical Properties
Tensile strength 28 N/mm² DIN 53455
Breaking strength 23ºC 38 N/mm² DIN 53455
Elongation @ break 23ºC  >600 DIN 53455
Torsional stiffness 23ºC 350 N/mm² DIN 53477
Torsional stiffness -40C 700 N/mm² DIN 53477
Ball indention hardness 30 sec.  46 N/mm² DIN 53456
Shore hardness D  64 DIN 53505
Notched impact strength (15º angle)  >30 o. Br. mj/mm² DIN 53453
 Abrasion  250-350%  Slurry Test
 Melting point  133ºC  polarising microscope
 Thermical coefficient of linear expansion 23-80ºC  1.7-2.5 x 10⁻⁴ / K ºC⁻¹ 1/K  DIN 52328
 Thermal conductivity @ 23ºC  0.40 W/ºC x m  DIN 52612
 Dimensional stability under heat  80ºC  DIN 53461 / ISO/R 75
Electric Properties
Volume resistance  >10¹⁷ W x cm  DIN 53482
Surface resistance  >10¹⁴ W  DIN 53482
Dielectric strength  150 KV / cm  DIN 53481
**The above specifications apply to all Premium Outrigger Pads**
